AITIR 2.0 Architecture

Version: 2.0.0

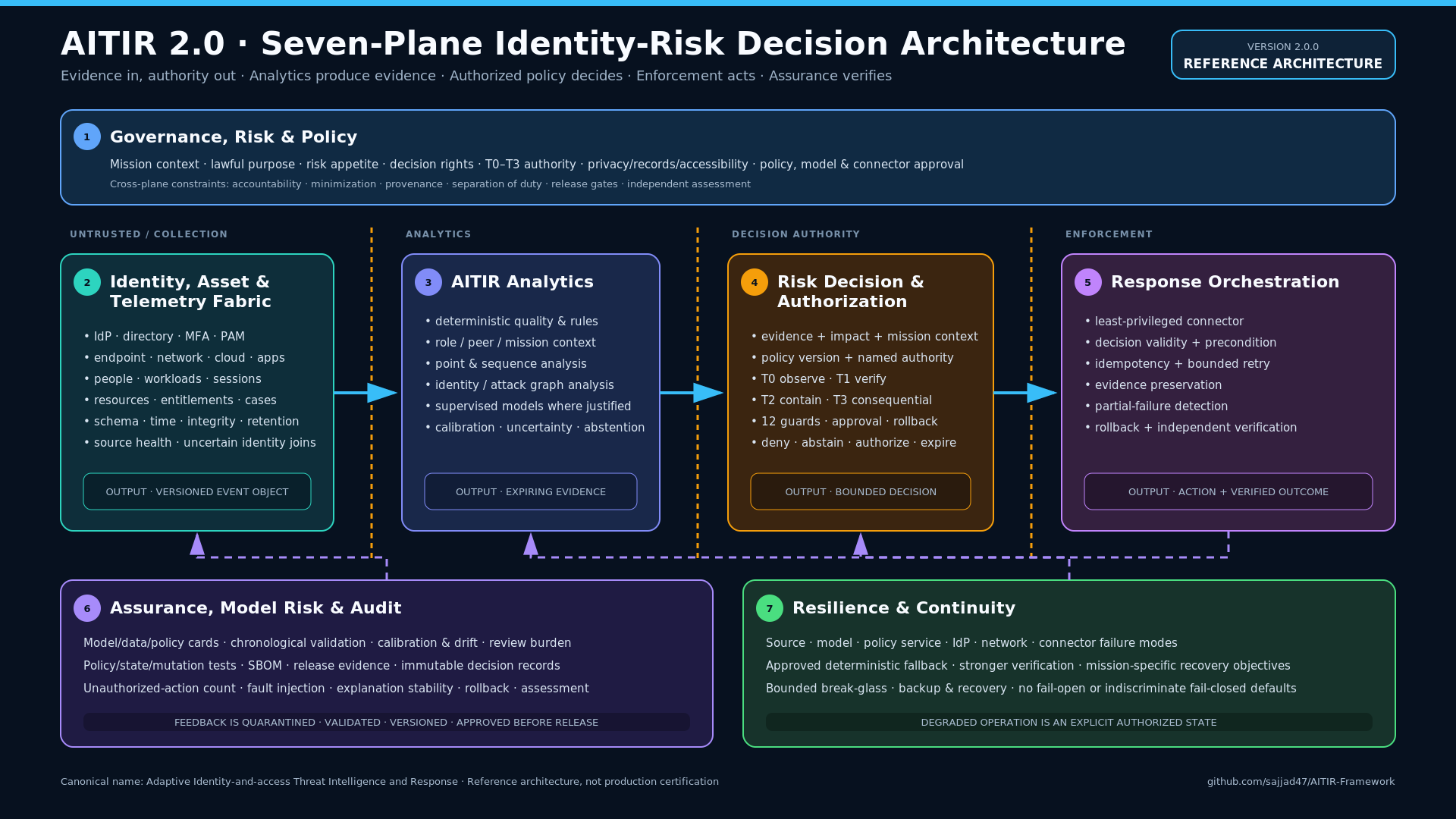

Source diagram: assets/aitir-framework-architecture.html

Architecture rule

Evidence in, authority out. Analytics never hold enforcement authority. A valid data object, score, graph edge, model explanation, threat indicator, or playbook is not an authorization.

Planes and responsibilities

1. Governance, risk, and policy

• system and mission context;
• risk appetite and intervention-cost policy;
• lawful purpose, privacy, retention, and contestability;
• named decision authority and separation of duty;
• model, policy, playbook, supplier, and connector approval;
• independent assessment and reauthorization.

2. Identity, asset, and telemetry fabric

• identity provider, directory, MFA, PAM, endpoint, network, cloud, application, data, vulnerability, and threat-intelligence events;
• human, service-account, workload, device, session, resource, entitlement, and case identities;
• event normalization, time, provenance, integrity, classification, and retention;
• source health, clock drift, schema drift, and uncertain identity resolution.

3. AITIR analytics

• deterministic quality and rule checks;
• role, peer, device, resource, time, mission, and exception context;
• point, temporal, relational, and supervised analysis;
• calibrated fusion and explicit missing-model behavior;
• evidence, counter-evidence, applicability, uncertainty, and expiration.

4. Risk decision and authorization

• separates anomaly, probability, impact, policy risk, and authority;
• applies T0-T3 action tiers and reference guards;
• issues deny, abstain, authorize, or expire;
• binds evidence hashes, policy version, approvals, safeguards, and validity period.

5. Response orchestration and case management

• verifies decision validity and target preconditions;
• uses least-privileged connectors and idempotency;
• preserves evidence and records partial failure;
• executes compensating action and rollback;
• maintains incident and case workflow.

6. Assurance, model risk, and audit

• model/data cards and calibration evidence;
• schema, policy, guard, state-machine, and mutation tests;
• SBOM, dependency, supplier, access, and release records;
• performance, queue, drift, privacy, robustness, and safety monitoring;
• independent outcome verification and control assessment.

7. Resilience and continuity

• safe degraded modes for source, model, policy, network, identity-provider, or connector loss;
• mission-aware recovery objectives;
• bounded, time-limited break-glass;
• backup and recovery for policies, schemas, models, decisions, and connector state.

Trust zones

Zone	Assets	Primary threat	Required boundary
External/untrusted	users, devices, partners, feeds, log text	spoofing, poisoning, prompt injection	authenticate, validate, isolate content
Collection	collectors, parsers, identity resolution	loss, replay, drift, false joins	provenance, schema, integrity, source health
Analytics	features, models, rules, graphs	evasion, overconfidence, leakage, model compromise	no enforcement credentials; signed evidence
Decision	policies, guards, approvals	stale policy, authority bypass, race	immutable evidence refs, separation, expiration
Enforcement/assurance	connectors, cases, audit, rollback	overbroad privilege, duplicate or partial action	least privilege, idempotency, independent verification

Principal flows

1. Sources emit untrusted records.
2. Collection validates and normalizes Version 2 events.
3. Analytics produces expiring evidence objects.
4. Policy combines evidence, mission context, intervention cost, and authority.
5. Denied or abstained cases enter a controlled queue; authorized cases produce decisions.
6. Connectors recheck preconditions and execute bounded actions.
7. Outcomes are independently recorded and verified.
8. Feedback enters quarantine; assurance controls any policy/model change.
9. Resilience manages loss and degraded operation across all planes.

Failure behavior

• missing source: mark evidence degraded; do not impute confidence upward;
• model unavailable: use approved deterministic policy or stronger verification;
• decision service unavailable: block state-changing automation rather than bypass authority;
• connector timeout: treat as unknown/failed until target state is verified;
• review overload: apply approved fallback and queue controls, never silent reclassification;
• suspected poisoning: quarantine source and feedback, preserve evidence, initiate incident handling;
• stale authorization: expire; require new evidence and decision.

Interfaces

Normative object contracts are in Data Contracts and schemas/. The full requirements are in the Version 2 Specification.
